What Is the Span of a Steel Box Girder?

Jul 27, 2026

Leave a message































The span of a steel box girder refers to the clear horizontal distance between two adjacent support points (piers, bearings, or structural supports) in a closed rectangular steel box girder.Its span design directly affects project safety, cost, and construction efficiency.It mainly depends on the structural system it serves:



As a self-supporting girder / truss: The economical upper limit is 350–400 m.For pure steel box girders, the economical span limit is 300 m; for steel-concrete hybrid girders, it extends to 338 m. Technically, self-supporting steel box girders can be manufactured for spans over 350m, but construction cost, wind stability control and long-term deflection maintenance costs will increase significantly.



As stiffening girders for suspension and cable-stayed bridges, the world's longest completed steel box girder suspension bridge has a main span of 2,023 m. There is no fixed theoretical upper span limit, and longer spans can be realized through optimized wind resistance design and cable system matching.

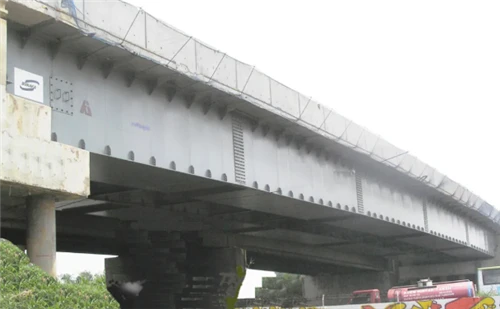

 steel box girder



As an experienced overseas steel structure supplier, we understand that girder span is a core parameter in project design, load matching, and construction layout. Drawing on international standards and overseas engineering practice, we provide a detailed overview of steel box section girder span classification, influencing factors, and practical selection guidance.





What is a Steel Box Beam?





 steel box girder

A steel box beam is a closed, rectangular or trapezoidal hollow structural member fabricated from steel plates, serving as the primary load-carrying element in bridge construction.



Its cross-section consists of a top plate and a bottom plate connected by vertical or inclined web plates, forming a closed box-shaped profile.



The box is internally fitted with longitudinal stiffeners (U-ribs or flat plate ribs) and transverse diaphragms to enhance the buckling resistance of the thin-walled structure and maintain geometric stability under load.

The closed cross-section distinguishes a steel box beam from open-section I-girders and gives it three decisive structural advantages:

Torsional Stiffness

Closed steel box girders possess much higher St. Venant torsional stiffness compared with open thin-walled beam sections. Under eccentric live loads, shear flow engages the full cross-section, ensuring balanced stress distribution and minimal distortion.



Strength-to-Weight Ratio

A steel box beam weighs only 1/3 to 1/2 of an equivalent prestressed concrete box girder. In long-span bridges where dead load governs design, this weight reduction directly lowers substructure costs and seismic response.



Aerodynamic Performance

The flat, streamlined profile reduces drag and raises flutter critical wind speeds significantly compared to truss girders-critical for bridges in coastal and typhoon-prone regions.



These characteristics make the steel box beam indispensable in two distinctly different structural roles: as a primary load-carrying girder in beam-type bridges, and as a stiffening girder in cable-supported bridges (including both cable-stayed and suspension bridge systems). Understanding which role applies is critical to addressing span-related questions.





Span Classification of Box-shaped Steel Beam





Box-shaped steel beam span classification is not based on a single dimension, but rather on the structural system in which the girder operates. The same steel box girder can be used in a bridge spanning 50 meters or a bridge spanning 2,000 meters - the difference lies in how the loads are carried.



Girder / truss system (self-supporting)



In this system, the box-shaped steel beam spans between supports, relying entirely on its own bending and shear capacity. There are no cables or towers providing supplementary load paths.



 steel box girder



Span Range Typical Application Steel Box Girder Configuration
50–100 m Urban viaducts, curved overpasses Constant-depth, single-cell box
100–250 m River crossings, highway bridges Variable-depth, single or double-cell; competitive with concrete rigid frames
250–340 m Major navigation channels Variable-depth hybrid girder (steel midspan + concrete side spans)
340–400 m Theoretical/economic limit zone Hybrid girder only; requires site-specific justification



Cable-supported system (stiffening girder)



The cables carry the primary vertical loads; the box-shaped steel beam provides torsional stiffness, aerodynamic stability, and the deck platform.



 steel box girder



Span Range Bridge Type Steel Box Girder Role
400–1,200 m Cable-stayed bridge Stiffening girder: resists axial compression from stay cables + bending under live load
1,000–2,000+ m Suspension bridge Stiffening girder: provides torsional rigidity and aerodynamic stability





Factors Affecting Box Section Steel Beam Span





Self-Weight & Bending Moment Cycle

Bending moment from self-weight rises with the square of span. Larger girder sections for load resistance add extra dead weight and create a vicious cycle. All-steel girders are uneconomical above 300m, composite girders top at 338m, and 350–400m spans bring prohibitive costs, excluding cable-bridge stiffening girders.

Deflection & Stiffness Limits

Live-load midspan deflection grows with the 4th power of span. Steel's fixed elastic modulus forces extremely deep girders to meet L/500~L/800 deflection standards, causing material waste, poor wind performance and difficult transportation & hoisting.Highway steel box girder: L/500 ~ L/600

Railway heavy-load steel box girder: L/700 ~ L/800.

Local Buckling of Thin-Walled Plates

Longer spans raise compressive stress on box girder flanges and webs, triggering thin-plate local buckling. Extra longitudinal stiffeners and diaphragms solve buckling but boost welding work, residual stress, manufacturing cost and weaken joint fatigue resistance.

Shear Lag Effect

Vertical loads cause obvious shear deformation in wide-flange long-span box girders. Stress concentrates around webs, remote flange steel is underutilized, and effective flange width shrinks with longer spans, lowering overall bearing efficiency.

Aerodynamic Wind Stability

Deep girders required for long-span stiffness expand wind contact area and intensify vortex vibration and flutter risks. Wind stability becomes the core design constraint for coastal typhoon zones, requiring costly wind-resistant reinforcement and longer construction periods.

Economic Feasibility

Spans over 350m compound all structural drawbacks above. Steel consumption, fabrication, welding and erection difficulty rise exponentially. Self-support steel box girders lose cost advantages versus cable-supported bridge systems for ultra-long spans.





Steel Box-shaped Steel Beam vs Other Bridge Types





Understanding when a steel box girder bridge is the right choice requires comparing it against competing structural types across key performance dimensions:



Dimension Steel Box Girder (Beam) Concrete Box Girder Cable-Stayed Bridge Suspension Bridge
Competitive span range 100–340 m 0–300 m 250–1,200 m 1,000–3,000+ m
Self-weight (girder only) Low High (2–3x steel) Low–moderate Low–moderate
Torsional stiffness Very high High High (box girder) High (box girder)
Aerodynamic performance Excellent Moderate Good Excellent (twin-box available)
Construction speed Fast (factory prefabrication) Slow (on-site casting) Moderate Long (tower + cable erection)
Maintenance demand Higher (OSD fatigue, corrosion) Lower Higher (cables, towers) Higher (main cables, anchors)
Girder depth Variable, L/20–L/50 Variable, L/18–L/40 Constant, 3–4 m Constant, 3–5 m





Box-shaped Steel Beam Span Application Examples





Beam/Girder System



Bridge Location Span Year Configuration Key Innovation
Rio-Niterói Bridge Brazil 300 m 1974 Pure steel box girder, 3-span continuous beam Orthotropic steel deck; 13 m depth at supports; monolithic segment lifting
Stolma Bridge Norway 301 m 1998 Lightweight concrete (LC60) Proved concrete viable at 300 m+ through reduced density (≈1,950 kg/m³)
Shibanpo Yangtze River Bridge Chongqing, China 330 m 2006 Steel-concrete hybrid girder, continuous rigid frame 103 m steel midspan insert; PBL shear connectors at transition zone
Taoer River Bridge Shandong, China 338 m 2025 Steel-concrete hybrid girder, continuous rigid frame Inclined transition surface; 127 m steel midspan (1,200 t)



 steel box girder



Cable-supported system

Bridge Location Span Year Configuration Key Innovation
Sutong Bridge Jiangsu, China 1,088 m 2008 Cable-stayed, steel box girder stiffening First cable-stayed bridge exceeding 1,000 m; twin-wall piers with D3.4 m drilled shafts
Stonecutters Bridge Hong Kong, China 1,018 m 2009 Cable-stayed, twin steel box girder Slotted twin-box aerodynamic section; stainless steel cladding on outer surfaces
Xihoumen Bridge Zhejiang, China 1,650 m 2009 Suspension, single steel box girder Streamlined single-box with 3.5 m depth; first Chinese suspension exceeding 1,600 m
Lingdingyang Bridge Guangdong, China 1,666 m 2024 Suspension, twin steel box girder Slotted twin-box for typhoon resistance; navigable channel in Pearl River Estuary
1915 Çanakkale Bridge Turkey 2,023 m 2022 Suspension, twin steel box girder World record main span; 3.6 m deep twin-box section; aerodynamic optimization for Dardanelles wind



 steel box girder





Why Choose Our Custom Steel Box Girder for Your Project?





Based on different span ranges of steel box girders, we provide targeted customized manufacturing and full-set supporting solutions for global bridge contractors and design institutes:As a one-stop steel structure supplier, we provide customized steel box girder production, technical support and modular export delivery, adjustable according to your project span, local environment and international standards.



Anti-Fatigue Orthotropic Steel Deck Production

We produce high-quality orthotropic steel deck components. Full penetration double-sided welding reduces internal defects at U-rib joints, and we supply STC composite deck steel parts to lower fatigue stress for long-span bridges.

01

Supporting Anti-Corrosion Steel Structure Matching

We reserve installation space for internal dehumidification systems during production to prevent condensation corrosion. Q500qNH weathering steel plates are available for coastal marine projects to extend coating maintenance cycles.

02

High-Precision Segmental Fabrication & Erection Steel Fittings

All steel box girder segments adopt robotic welding and laser inspection to meet millimeter-level tolerance. Custom steel erection fittings for launching, cantilever assembly and floating crane hoisting are available based on project span and site conditions.

03

Custom Steel-Concrete Transition Components

For 250–400m composite box girders, we manufacture transition steel plates, shear studs and PBL connectors to ensure stable force transfer between steel and concrete, with supporting structural calculation data provided.

04

Custom Aerodynamic Steel Box Girder Segments

For cable-supported bridges over 1000m span, we produce wind-tunnel optimized steel segments: single streamlined box for spans under 1500m, slotted twin-box for typhoon-prone areas above 1500m, triple-box components for crossings over 3000m.

05



CNC Multi-torch Straight Cutting Machine
CNC Multi-torch Straight Cutting Machine
Automatic Fitting-Up Machine
Automatic Fitting-Up Machine
Gantry-type multi-function submerged arc welding (SAW) machine
Gantry-type multi-function submerged arc welding (SAW) machine
Heavy-Duty Steel Structure Shot Blasting Machine
Heavy-Duty Steel Structure Shot Blasting Machine



Contact now to get steel box girder



Girder Type Single Box Girder / Multi-Box Girder
Span 30 m – 200 m,or customized
Road Width 8 m – 42 m, or customized
Material Grades Q345qC/D/E, Q370qE, Q420qE, ASTM A709 Gr.50 / Gr.50W, EN 10025 S355J2 / S355NL, JIS SM490
Load Capacity Designed in compliance with AASHTO HL-93 load standard
Surface Treatment Shot Blasting Sa 2.5,Zinc-rich primer, epoxy intermediate coat & polyurethane topcoat
Connection System Bolt & nut fastener assemblies



FAQ:



What coating solutions do you provide for marine steel box girders in high salt fog areas?


We adopt Sa2.5 blasting pretreatment, matched with zinc-rich primer, epoxy intermediate paint and polyurethane topcoat three-layer anti-corrosion system, and supply weathering steel Q355qNH/Q500qNH for coastal bridges.



Can you fabricate curved wide multi-cell steel box girders according to foreign bridge drawings?


Yes. Our factory supports full drawing deepening, custom processing of curved, widened, variable cross-section multi-cell steel box girders, compliant with AASHTO, Eurocode, BS, AS standards.



What factory qualifications and inspection reports can you provide for export steel box girders?


We hold ISO9001 quality certification, CE EN1090 steel structure certification. Each batch of products comes with material mill certificates, MT/UT NDT test reports and third-party coating inspection reports issued by SGS/BV.



Why are steel box girders preferred for long spans?



Torsional stiffness: Their closed cross-section provides exceptional resistance to twisting forces.

Aerodynamic stability: Sloped or trapezoidal webs reduce wind-induced vibrations on major crossings.

Efficiency: They handle high bending moments with less material compared to multiple open standard plate girders.
