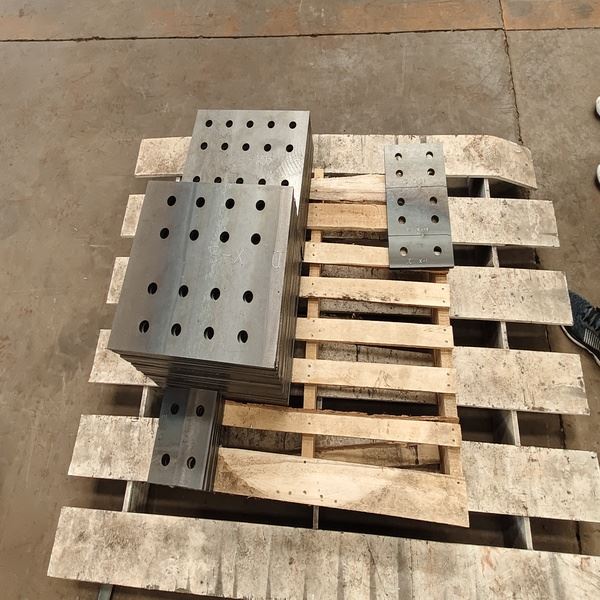

Our gusset plates are high-strength, precision-machined structural connection plates, typically fabricated from high-strength structural steel, used to reinforce and connect structural members at critical joints. They are commonly fastened by means of bolts, rivets, or welding to evenly distribute loads and prevent deformation at the joints, thereby stabilizing the structure of trusses, bridges, and building frames.
Specification of Structural Steel Gusset Plates
| Description | Structural Steel Gusset Plates |
| Material Grade | GB: Q235B/C/D, Q355B/C/D/E, Q420C/D (Z15/Z25/Z35 as required); EN: S235, S355, S420; ASTM: A36, A572 Gr.50/60, A588 |
| Standards | Material Standards: GB/T 700, GB/T 1591, EN 10025, ASTM A36 / A572, Execution Standards: EN 1090-2 (EXC2/EXC3), GB 50205, AWS D1.1, AISC 360 |
| Quality Assurance | 100% VT (Visual Testing) for all welds and surfaces per ISO 17637 / AWS D1.1, MT/PT and UT for welds/heavy plates per project specification and execution class, Dimensional and hole pitch tolerances per applicable execution standards |
| Corrosion Protection | Blast cleaning to Sa 2.5 (ISO 8501-1 / SSPC-SP10), C3/C4/C5 paint system or Hot-Dip Galvanizing (HDG) per EN ISO 1461 / ASTM A123, Friction surfaces must be treated to meet design slip coefficient (masked for painting, or properly treated post-galvanizing) |
| Technical Support | Tekla Structures (BIM) Detailing, Connection Stiffness & Capacity Verification, Shop Drawings, and Fabrication Blueprint Optimization |
| Logistics & Packaging | Sea-worthy export packaging: Categorized bundling by mark/piece number, aligned bolt holes to prevent transport deformation. Machined and friction surfaces coated with strippable rust-preventative compound or wrapped with waterproof fabric. Secured on heavy steel skids or container cradles. |
Connection Methods for Gusset Plates
Welded Connections
Characteristics: High load transfer efficiency, exceptional structural integrity, and virtually no cross-sectional reduction.
Applications: Widely used in high-rise building frames, long-span bridges, heavy industrial plants, and other fixed joints subjected to dynamic loads or requiring high load-bearing capacity.
Bolted Connections
Characteristics: Extremely convenient to install, easy to dismantle, adjust, and maintain afterward.
Applications: Suitable for prefabricated steel structures, column base connections in industrial buildings, on-site assembly joints, and projects subjected to repeated loads or requiring future maintenance, modification, or expansion.
Riveted Connections
Characteristics: Reliable load transfer, good toughness and ductility, excellent seismic and impact resistance, and easy quality inspection.
Applications: Commonly used in heavy-duty cranes, equipment structures subjected to strong vibration, tall towers, as well as bridge repairs requiring exceptionally high fatigue resistance and specialized military applications.
Roles of Structural Steel Gusset Plates
Convergence and connection
Used to connect multiple members converging at a single joint (e.g., web members and chords in a truss), fastened by means of welding or high-strength bolts.
Internal force transfer
Serving as the structural connection hub, safely and smoothly transferring forces from various directions (such as tension and compression) within the truss or frame to other members.
Stress distribution
By enlarging the load-bearing area, preventing excessive local stress concentration at the joint, thereby enhancing the overall structure's seismic and buckling resistance.
Ensuring structural stability
By connecting bracing to the main frame, significantly improving the overall structure's lateral stiffness and load-bearing capacity.
Applications of Structural Steel Gusset Plates
Truss and space frame structures: In roof trusses, crane girders, and stadium space frames, gusset plates gather multiple tension or compression web members and connect them to the chords, ensuring smooth load transfer.
Seismic bracing systems: In frame structures, gusset plates are used to connect diagonal braces and cross braces, providing end restraint for the bracing members and playing a critical role in the lateral stiffness and overall stability of the structure.
Modular buildings: In prefabricated steel structures, gusset plates serve as corner column connectors, enabling vertical stacking of modular units by means of bolting.
Pile splicing: In driven precast pile engineering, steel gusset plates are commonly used to weld together the ends of two concrete pile segments, increasing the robustness during pile driving.
Our Customization Services of Structural Steel Gusset Plates
At GNEE,We deliver tailored fabrication services for structural steel connections. Guided by our experienced engineering team, we support BIM/Tekla detailing and connection design verification, ensuring all custom gusset plates optimize structural performance while meeting stringent international compliance standards (e.g., EN 1090-2, AISC).Whether you need specific dimensions, shapes, or thicknesses, our expert team can deliver tailored, high-quality solutions to meet your requirements.Here are some of the custom specifications we offer:
Thickness & Through-Thickness Performance Customization
Accommodating a wide spectrum of thicknesses, from standard splice liners to heavy connection plates. For thick plates assigned to high-tension structural joints, materials can be sourced and processed with certified through-thickness properties (such as Z15, Z25, or Z35) to mitigate the risk of lamellar tearing under localized stress, subject to design review.
eometric Configuration & Precision Machining Customization
We provide CNC-based precision fabrication services, including complex polygon plate cutting, high-accuracy drilling of non-standard high-strength bolt holes (standard, oversized, or slotted), and custom bevel preparation to meet welding procedure requirements.
Material Grade Integration & International Code Compliance
We provide multi-standard steel matching and procurement services, with strict alignment to major international grades including ASTM/AISC, EN, and GB. In addition, we can deliver material mechanical property and subzero-temperature impact toughness testing services in accordance with the project's technical framework, with full support for third-party technical audits.
Packing & Delivery of Structural Steel Gusset Plates
Coating: Ensure that primer or specialty paints are fully cured before packing to prevent sticking or damage to the painted surface.
Corrosion protection: For long-distance transport or high-humidity environments, apply rust inhibitors or use desiccants and vapor phase corrosion inhibitors (VCI).
Sorting by marking: Group and bundle stiffener plates according to part markings or installation sequence.
Layering: Stack plates neatly and evenly. Insert timber dunnage, rubber, or plastic spacers between plates to prevent friction wear from steel-to-steel contact.
Edge protection: Place steel edge protectors beneath the strapping to prevent it from cutting into the corners of the stiffener plates.
FAQ:
What are gusset plates used for?
Gusset plates are used to connect beams, truss members, and columns in various construction and engineering applications. They provide critical support and reinforcement to structural joints, ensuring the longevity and stability of the structures.
Can you customize gusset plates to specific project requirements?
Yes. California Steel Services offers customizable gusset plates to meet your specific project requirements. Whether you need a particular size, shape, thickness, or material, our expert team can craft gussets to your precise specifications.
How are gussets installed?
Gussets can be installed by welding, bolting, or riveting onto truss members or columns.
How can I get a quote for custom gussets?
To get a quote for custom gusset plates, fill out the "Request Quote" form below with your specific requirements. Our team will work with you to provide a customized quote based on your project specifications the same day, within 4 to 6 hours.
What is the difference between metal gussets and steel gussets?
Metal gussets are plates made from various metals, including steel, aluminum, or other alloys. Steel gussets specifically refer to gusset plates made from steel.
What is the difference between a truss gusset plate and a general gusset plate?
A truss gusset plate connects truss members, the framework components used in bridges, roofs, and towers. These plates ensure the truss can bear loads and maintain structural integrity. A general gusset plate, however, can reinforce various structural joints, including connections between beams, columns, and other components. While all truss gusset plates are gusset plates, not all gusset plates are used in trusses.
