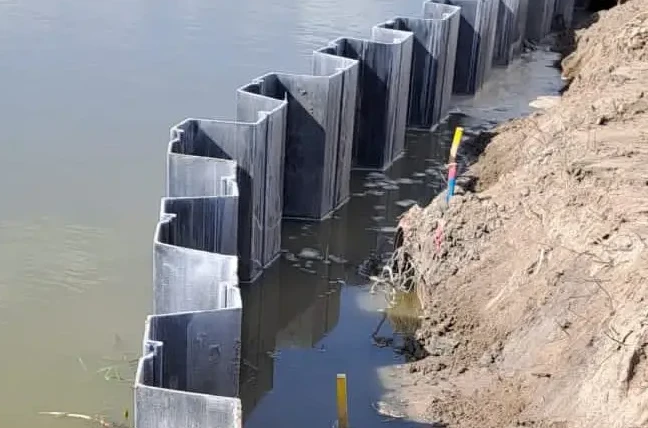

Z-shaped steel sheet pile is a hot-rolled sheet-pile section whose profile runs in a broken line (Z-shape), with formed interlocks at both ends of the section, driven in pairs to form a continuous wall that retains soil and also guides water flow. It offers excellent bending strength and a high section modulus, making it the industry standard for stabilizing riverbanks, preventing soil erosion, and resisting high-velocity flow impact.
What Is a Z-Shaped Steel Sheet Pile?
Z-type steel sheet pile is a hot-rolled steel section whose profile extends along a broken line, with a formed interlock at each end of the section. The piles are driven in pairs and engage with the adjacent pair so the whole wall closes into a continuous structure that retains soil and guides water flow.
Because the interlocks sit at the outermost ends of the section, away from the neutral axis, they serve both as the structural connection and carry a large share of the bending action.

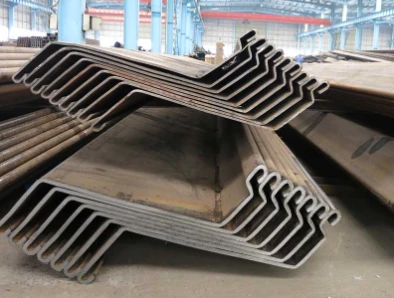

The section is named by width and wall height under the AZ or JZ system (for example AZ28-750), and is supplied hot-rolled to the principal sheet-pile standards.
Why Z-Type Sheet Piles Are Used for Riverbank Protection?
High Section Modulus for Scour and Drag Resistance. The undulating depth of the Z-section gives a larger section modulus per unit mass, so a wall that resists scour and flow can be built without over-weighting the section.
Interlocks at the Outermost Edge. With the interlocks set away from the neutral axis, the Z-wall transmits a higher proportion of the flow and earth pressure to the foundation, raising the wall's effective load capacity for the same amount of steel.
Lighter Wall at Equal Capacity. At a comparable section modulus, the Z-wall's mass per square meter is lower than that of a U-wall, reducing tonnage, transport, and handling.
Watertight Closure Protects Backfill. Fully engaged interlocks keep scour and seepage from carrying the backfill behind the wall away and washing it out.
U-shaped Steel Sheet Piles vs. Z-shaped Steel Sheet Piles for Riverbank Protection
| Property | U-shaped steel sheet pile | Z-shaped steel sheet pile |
|---|---|---|
| Section modulus per unit mass | Moderate | Higher, due to the corrugated depth |
| Interlock position | Near the web | At the extreme fibres, far from the neutral axis |
| Load transfer to the ground | Lower | Higher, for the same applied load |
| Wall mass at equal capacity | Heavier | Lighter kg/m² |
| Typical bank-work role | Watertight revetments, moderate heights | Scour-prone and higher facing where moment governs |
Note:comparison in principle; the deciding choice depends on the design moment and the governing standard.
Protection Forms of Z-Type Sheet Piles
Two wall forms cover river bank protection with Z-shaped steel sheet piles, and the choice follows the flow and the stability of the ground:
| Form | When it suits | Arrangement |
|---|---|---|
| Vertical wall | Moderate flow and scour, stable toe | A single run of Z piles forms the facing; the wall is cantilevered from embedment, or anchored where a higher head requires restraint. |

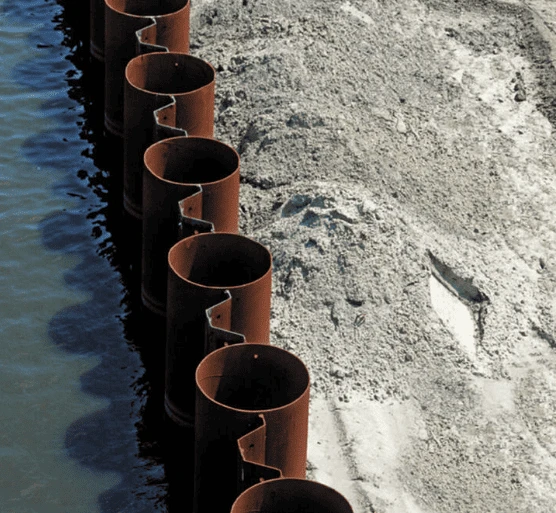

| Pipe-combi wall | High flow, deep scour, weak ground | Steel pipe or H main piles carry the moment while Z sections close the panel between them, giving a very high composite section modulus. |

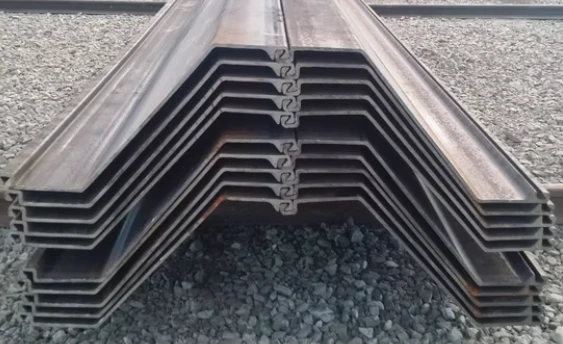

Functions of Z-Type Sheet Piles' Interlock for Riverbank Protection
In the waterside wall, the Z-pile interlock is both a load-bearing point and the key to keeping the backfill from washing out. Because the interlocks sit at the outermost ends of the section, away from the neutral axis, they transmit a higher proportion of the flow and earth pressure to the foundation, while the fully closed interlocks prevent scour and seepage from carrying the backfill behind the wall away.
| Function of the interlock | How it works | Significance in bank-work |
|---|---|---|
| Structural connection | Closes each pile to its neighbour into a continuous run | Keeps the facing acting as one along the bank line |
| Load transfer | Sits at the extreme fibres, far from the neutral axis, handing load to the ground | Raises effective capacity for the same steel under scour |
| Water sealing | Engages against the next interlock to block water passage | Keeps the backfill stable behind the revetment |
Steel Grades and Standards for the Z-Shaped Steel Sheet Piles

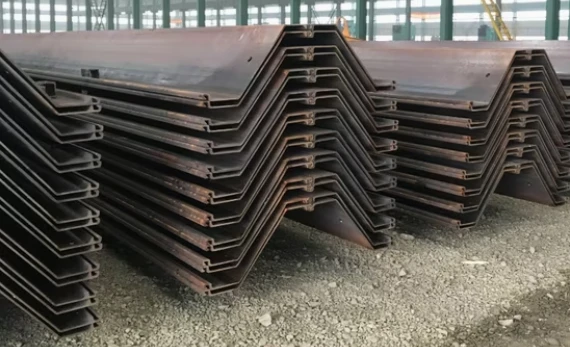

Z-shaped steel sheet piles are supplied hot-rolled against one of the major sheet-pile standards, with the grade chosen for the yield strength the facing needs. Higher grades give a higher allowable stress for the same section, so they are selected where flow, scour or a long embedded wall demands it.
| Standard | Grades |
|---|---|
| EN 10248 (hot-rolled) | S235GP, S275GP, S355GP, S390GP |
| JIS A 5528 | SYP, SY295, SY390 |
| GB/T 20933 | Q295P, Q345P, Q390P, Q420P, Q460P |
Note:grade correspondence varies across standards; confirm the yield strength and chemical composition of the supplied heat on the mill certificate.
How to Select the Right Z-Shaped Steel Sheet Piles?
Selecting the Z-Type Sheet Pile Section by Flow Load
Selection starts from the flow: the design velocity sets the scour depth, and the peak flood level together with the backfill gives the bending moment the wall must carry, which in turn determines the required section modulus. The table below lists several representative Z (AZ) sections and their section moduli; the exact choice must be rechecked against the computed wall pressure.
| Section | Width b (mm) | Height h (mm) | Thickness t (mm) | Wall mass (kg/m²) | Section modulus W (cm³/m) |
|---|---|---|---|---|---|
| AZ 12-700 | 700 | 314 | 8.5 | 96.7 | 1205 |
| AZ 18-700 | 700 | 420 | 9.0 | 109 | 1800 |
| AZ 26-700 | 700 | 460 | 12.2 | 147 | 2600 |
| AZ 28-700 | 700 | 470 | 12.5 | 153 | 2800 |
| AZ 28-750 | 750 | 470 | 12.5 | 150 | 2780 |
| AZ 36-700N | 700 | 499 | 15.0 | 169 | 3590 |
| AZ 48-700N | 700 | 540 | 17.0 | 193 | 4790 |
Selecting Z-Type Sheet Piles by Service Life
Riverbank protection is a permanent structure, so Z-type piles are selected not only by bending moment but also by service life. Corrosion in fresh-water rivers is governed by turbulence and aeration, and is addressed by adding a wall-thickness allowance over the design life, supplemented by a coating where necessary, or by using corrosion-resistant steel under severe exposure. Section, allowance, and coating are set together so the wall retains its load capacity throughout the specified service life.
| Corrosion control | Where it applies | Effect on design life |
|---|---|---|
| Thickness allowance | Waterline, splash and high-turbulence zones | Compensates corrosion over the service life |
| Protective coating | Atmospheric and splash zones of the facing | Extends the interval of maintenance |
| Corrosion-resistant steel | Severe or long-life exposure | Reduces the required allowance and cutbacks |
Construction and Reuse of the Z-Shaped Steel Sheet Pile

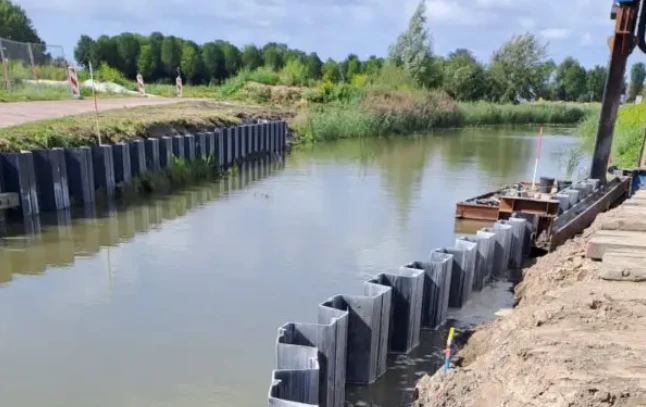

A bank-facing wall of Z-shaped steel sheet piles is driven along the bank line with a method matched to the ground and the site, checked for line, depth and interlock closure as it progresses.
| Stage | On-site work | Control point |
|---|---|---|
| Driving | Place Z piles in pairs along the bank line, thread interlocks | Plumb, driven depth, interlock closure |
| Verification | Check the run as it advances | Wall line, depth, closed interlocks |
| Reuse (temporary sections) | Extract after the facing is established, inspect, re-drive later | Undamaged pile face and lock |
Z-shaped steel sheet piles answer a river bank with a facing that is strong, scour-resistant, watertight and economical in steel. As a supplier of steel sheet piles we supply the Z (AZ) sections and grades of your governing standard - rolled to spec with mill certificates, surface and interlock finished for your stream conditions and wall form - and advise on the section, corrosion allowance and combi arrangement to suit the bank.
Send your flow velocity, scour depth and bank height for a section recommendation and quotation, or contact our team to match the Z section to your protection wall.
Contact now to get Z-shaped steel sheet piles
FAQ:
When should Z piles be chosen over U piles for bank-work?
Z piles win on section efficiency: at a similar section modulus the Z wall is lighter and transfers load more effectively, so scour-prone or higher facings usually prefer Z. U piles remain common for watertight revetments and moderate heights where supply is established.
What is the limit on flow velocity and scour depth?
There is no fixed ceiling - the section, embedment and wall form (vertical or combi) are scaled to the flow and scour, with a thickness allowance where turbulence is high; very weak ground may need a combi wall or additional toe work.
What is the design life of a permanent Z facing?
Design life is set by the corrosion allowance, coating and grade chosen for the upstream and downstream exposure, and is usually stated by the structure's service-life target rather than the steel alone.
Do you provide selection and design support?
Yes. As a Z sheet pile supplier we recommend the section, steel grade, pile length, corrosion allowance and wall form from your bank data and confirm mill certificates; the formal structural calculation is done by the designer, to whom we supply the section parameters.
How are supply and lead time arranged?
We supply against the section and grade of the chosen standard, with quantity worked out from the bank length and height and lengths made up to the facing height; once the bank data, section, tonnage and required date are set, we give the production or delivery plan.
